Fuel Starvation and The Obscure Check Ball Valve

From c34.org
Jump to navigation Jump to search

On September 20, 2019, I was motoring back from a few enjoyable nights at my favorite local anchorage when I experienced a fuel starvation issue for the first time in my boat. We have sailed Aquavite since 1998. The engine simply sputtered and died, would restart after a few minutes and die again. There were no previous issues, ever.

I replaced the fuel pump. I had corrected the fuel flow from the tank to the primary when we first got the boat. I replaced the primary filter last year. I replaced the secondary filter. When a test sail proved fruitless, I had to go further.

I remembered reading the Racor manual ages ago about a "fuel check valve" that's cleverly hidden at the inlet of the filter housing. It's called a ball check valve, which keeps fuel from emptying from the filter if the tank is below the filter, which makes sense. I undid all the new fuel hoses I'd just put in (!) for the new fuel pump and unscrewed the primary filter and bowl, and then removed the housing.

The filter housing is the Racor 220 / 225 Spin On Series, using the ubiquitous Racor R24 Series filters, installed on most Catalina 34 boats. On the top of the housing is a large plastic screw, identified in the manual’s first page diagram as the “Flow Check Valve” and on page four, it is replacement part list Item 3, part # RK20011, “Check ball valve and plastic cap.”

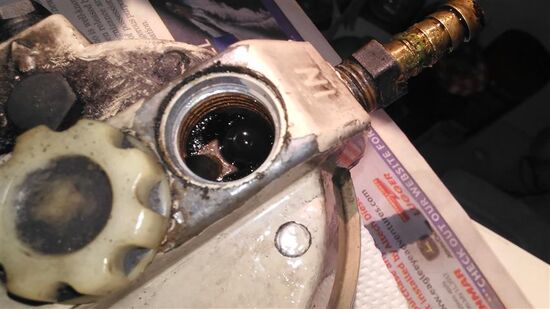

I unscrewed the check valve plug and O ring and found 33 years of accumulated tiny black particles that kept the ball from rising and allowing fuel to flow. It didn't take much crud at all to stop the ball from working properly. It's a very small chamber about the size of a quarter and the ball is smaller than a dime. There was actually no "bad fuel" issue, just decades of what I would consider to be normal stuff found in any liquid. I cleaned it out, and things are back to working properly.

If you have fuel starvation issues, or anything that reduces your engine RPMs, consider this obscure fuel filter housing ball check valve as part of your diagnostics.

Filter ball valve.jpg
