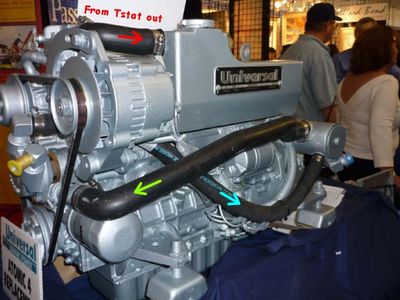

The top four indicate the engine coolant and raw water cooling water flow for the B-series M-25XPB, M-35B engines.

The coolant loops on the earlier engines (M-25/XP/XPA, M35/A) are identical (bottom schematic,) except that the hoses are in somewhat different locations.

Coolant Loops for B engines (M-25XPB shown)

Front Front

Front quarter Front quarter

Port side Port side

Rear quarter Rear quarter

Cooling loops for earler engines

M-25 cooling.jpg

--KWKloeber 2 February 2019
