By Richard Brantley, Good Friday (C22) and Faith To Faith C30

Easy Project Using Plastic Rail Clips

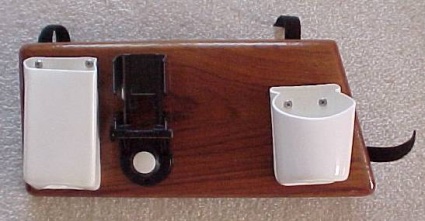

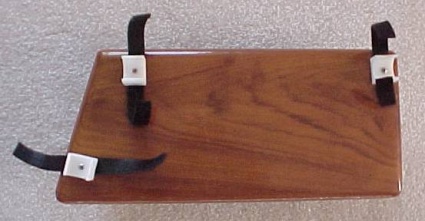

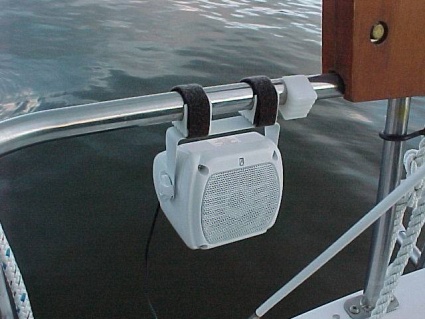

There are these plastic blocks that are designed to hold plastic dodger windows off the metal frames. I have found a new use for them on my C30. I used them to attach items to the stern rail. They have been in service for about a year and no problems. They come in two sizes 7/8" & 1" so get the right size for your rail. I added a Velcro strap for security and attached with one SS screw. For the cockpit speakers I ran the speaker wire through the bilge blower hose just where it joins the metal deck scoop and sealed with 5200 and added sealed terminals to the speaker wires so they can be easily disconnected and stowed below.


Easy Project Using Plastic Rail Clips

There are these plastic blocks that are designed to hold plastic dodger windows off the metal frames. I have found a new use for them on my C30. I used them to attach items to the stern rail. They have been in service for about a year and no problems. They come in two sizes 7/8" & 1" so get the right size for your rail. I added a Velcro strap for security and attached with one SS screw. For the cockpit speakers I ran the speaker wire through the bilge blower hose just where it joins the metal deck scoop and sealed with 5200 and added sealed terminals to the speaker wires so they can be easily disconnected and stowed below.
