Nav station hanging locker installation

By Bonnie Mitchell Oraios #575

We have a Cruise Air 12,000 BTU unit. It was installed by the dealer we bought the boat from back in 1987. It was installed in the hanging locker in the main salon and does take up most of the space. Here are a few pictures of the installation. We have had to cover the hatches if we needed to be comfortable during the day in the middle of July in a hot harbor in SW Florida. It is big enough to keep the entire boat comfortable at night for sleeping during the summer months here with the addition of a couple of fans in the front and rear cabins.




Forepeak installation

Karen and Terry Clark, Yet To Be #1095

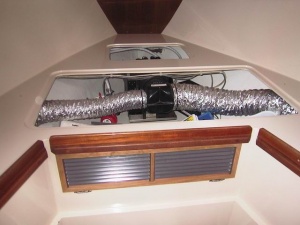

Southwest Florida has wonderful cruising grounds, but it can be a little hot in the summer, especially in marinas where we can’t swing into the wind. After two summers here, we finally decided to install A/C in Yet To Be, our 1990 C34. Even though we sleep forward in the V-berth, we wanted to cool the aft cabin also for our occasional overnight guests. We also wanted to preserve as much storage space as possible since the C34 doesn’t ever seem to have enough. After looking at several installations, we decided to put the A/C unit under the V-berth and run a duct down the port side to the aft cabin.

We selected a Mermaid 16,500 BTU side discharge air conditioner because it was one of the smaller units available and Mermaid is manufactured in nearby Fort Myers. The weight of the A/C unit far up in the bow doesn’t seem to have made much difference in the sailing of the boat, but we don’t race any more either.


The biggest problem was cutting holes for the 4" duct down the port side. I borrowed a 90 degree 1/2" drill and hole saw and cut 4 1/4" holes in all the bulkheads down the port side before I found that 4" duct needed a 4 1/2" hole to fit. I was able to enlarge each hole, but it wasn't easy. I guess I should have tried the duct through a test hole before drilling. Surprisingly, the 6” duct fit through a 6” hole.


I can adjust the dampers in the vents over the chart table and in the head to direct more or less air to the aft cabin. We sleep forward in the V-berth, so the aft cabin is usually used for storage unless we have guests on board. I used rubber pads to isolate the A/C from the mounting platform and the platform from the hull, so the noise and vibration in the V-berth is only a mild hum. It has not been a problem sleeping.

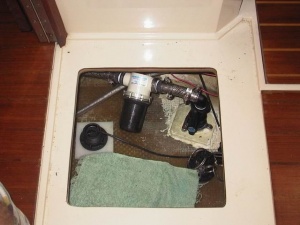

I was able to find a 15A breaker that matches the other AC breakers in the electrical panel and wired the A/C to that. Everything runs on the original, 30A shore power. I looked at Mermaid's Condensator to siphon the condensate overboard, but it looked to me like seawater could come back into the boat through it. Since my drain is pretty far up in the bow and gets hit by waves when underway, I decided not to use it and I ran a drain tube back to the bilge sump in front of the mast. I usually have a little water in the sump anyway because of the keel-stepped mast.

We have been very pleased with the A/C performance. If we have guests on board, we partially close the chart table and head vents and the aft cabin cools nicely. We used a reverse cycle unit and we even took advantage of the heat a couple of times this winter. The hinge down return air grill to give easy access to the remaining under the V-berth storage was an added bonus. With cool air ducted to every cabin and minimal impact on storage space, we’re more than happy with the results.



Alternate Forepeak Installation

Mike and Jan Smith, Breezer #688 (1988)

I decided to install a small Mermaid M5 5200 BTU air conditioner to cool the forepeak area while we are at anchor overnight. This is how I installed a ¾” marine plywood shelf underneath the forepeak using West System materials to hold the air conditioner and accessories. I wanted the shelf to be 18” forward of the forepeak bulkhead, mounted on the centerline of the boat, and 6” off the forepeak sole. I removed the forepeak cushions and storage compartment insets. I used a 3'x2' piece of cardboard to make a template to be used to cut out the shelf. I centered and squared the cardboard with the longer dimension athwart ships and pushed it forward until the two forward corners touched the sides of the hull. I drew lines on both port and starboard ends of the piece of cardboard parallel to the hull about 1' in from the edge to approximate the hull angle and then cut the template out with a pair of scissors. I test fit the template below the forepeak using a two way level and it needed only minor trimming. I traced the template onto a piece of precut 2'x4', 3/4 marine plywood from Lowe's. I cut the shelf out with a circular saw and angled the outboard edges at 30 degrees to approximate the hull flare and checked the fit of the shelf with the two way level. I used 3M Adhesive Remover to clean the hull mounting surfaces and scuffed them with a wire brush. I used a thick bead of 3M 4200 adhesive along each outboard edge and fit the shelf again. I had to lightly shim the shelf at two places to get it level. Using a disposable brush I wet out an area about 3 ½” inside the outboard ends of the shelf and up about 3 ½” on the hull with a mixture of West System epoxy and Fast Cure hardener. I set two layers of 6" x 22" saturated fiberglass tape applied about 2 hours apart along each joint, giving me an equal 3" overlap on the shelf and hull surfaces. I epoxied the entire top surface of the platform for appearance. After it cured overnight, I trimmed the rough edges of the shelf a bit, sanded the top surface smooth with an orbital sander. I painted it white with epoxy paint, and the shelf was ready for the air conditioner to be mounted.
