Al & Michele's Catalina 34

Hull #55 "Kindred Spirit"


E-Mail me if you have any questions at (alwsail@aol.com)

Catalina 34
Pictures of Various
"Galley Shelves"

Click on any picture to enlarge it
"Kindred Spirit"
Instruction for making found at
Capt Al's Shelf Upgrade Page

"Kindred Spirit"
Lights were incorporated into this shelf unit.
Capt Al's Shelf Upgrade Page

Joe & Pat Turner
"Lovepat" C34 # 1039


Visit Joe's Home Page at
http://www.e-marine-inc.com/catalina.html

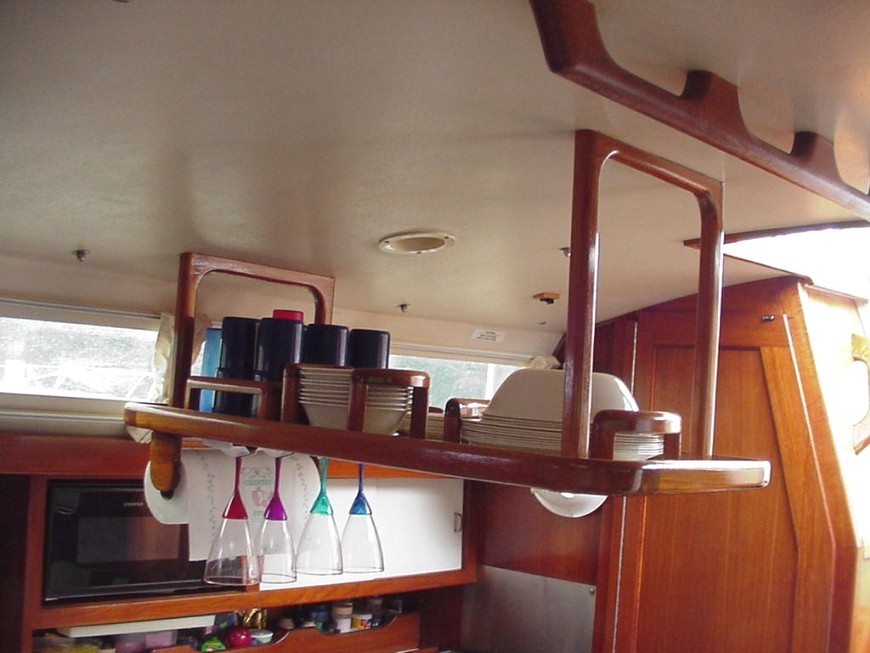

The shelf is super strong - the strength comes from having a threaded rod with end plates on both ends. We have made several crossings to and from the Bahamas with seas up to eight feet. We never lost a dish. Picture to the left shows the support on the bottom of the threaded rod. A similar plate is attached above under the slide for the companionway. Installation requires removing the companionway slide to install the top braces and reinstalling the slide. The treaded rods are covered with teak and the supports for the dishes are teak. The installation is very labor intensive but we could make a kit. Contact Joe at joet@gate.net



Over-the-Galley-Sink
Microwave "Legacies"

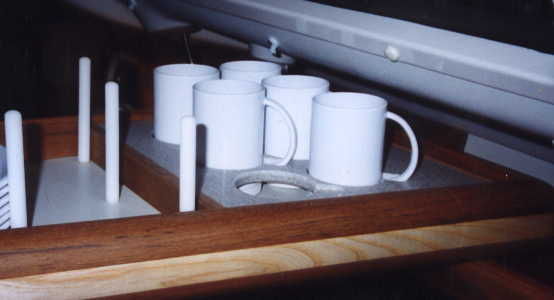

Most manufactured shelves use pegs to hold cups and dishes.

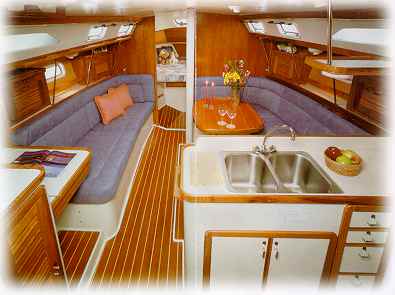

Standard Interior of a 1998 Catalina 34

Click on any picture to enlarge it
